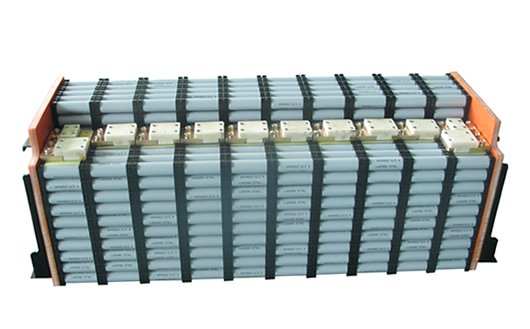

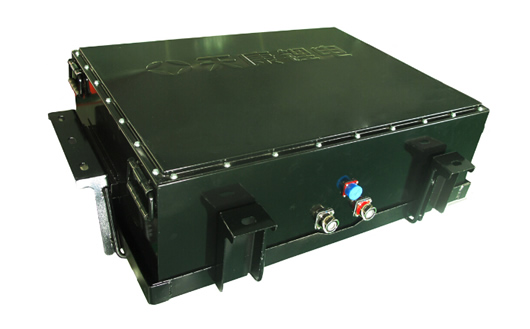

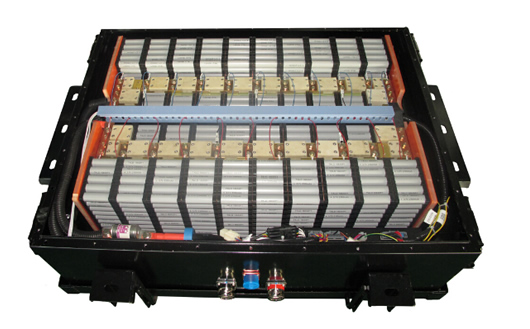

天康T50电池包60V 243.6Ah

型号Model

TKLD-60/243.6

额定容量Rated Capacity

243.6Ah

额定电压Rated Voltage

60V

内阻Resistance(AC)

<12mΩ

重量Weight

185kg±1

尺寸Dimension

长L×宽W×高H(mm)

 -

放电

Standard Discharging

恒流/截至电压

Constant Current/Cut-off Voltage

60V

充电

Standard Charging

恒流/截至电压

Constant Current/Cut-off Voltage

84V

快速充电

Fast Charging

恒流/截至电压

CC/Cut-off Voltage

60V

放电深度

Depth of Discharging

≥80%

工作温度

0℃—55℃

储存温度

Storage Temperature

10℃—45℃

输入/输出端

Input/Output Terminal

正极(红色) /负极(黑色)

Positive Electrode(red) / Negative Electrode(black)
